Description
CET 23hp Vanguard Powered Pressure and Volume Pump
Flows:
The 23hp Vanguard Powered Pressure and Volume Pump is most suitable for drop-in units. The engine and pump are mounted on a skid frame. The skid version is easily mountable on vehicles and trailers.
Engine specifications:
Pump unit specifications:
Included Accessories:
Warranty:
3 Years Limited

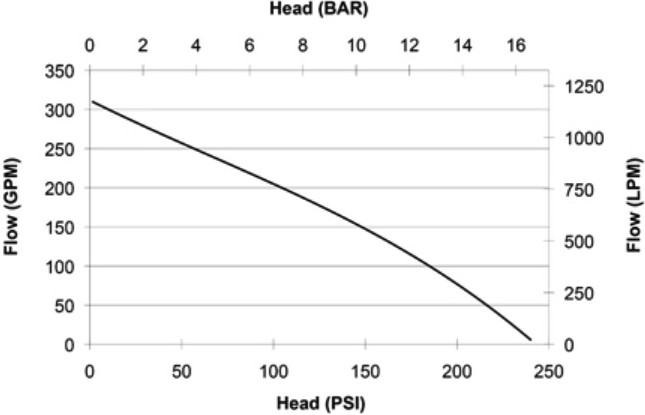

Flows:
MAX FLOW: 300 GPM
MAX PRESSURE: 225 PSI
265 GPM @ 50 PSI
150 GPM @ 150 PSI
80 GPM @ 200 PSI
MAX PRESSURE: 225 PSI
265 GPM @ 50 PSI
150 GPM @ 150 PSI
80 GPM @ 200 PSI
The 23hp Vanguard Powered Pressure and Volume Pump is most suitable for drop-in units. The engine and pump are mounted on a skid frame. The skid version is easily mountable on vehicles and trailers.
Engine specifications:
- Vanguard, model 380000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- Inlet with NPT thread (other threads available on request)
- Outlet down right with NPT Threads
- Control panel Quick connector instead of battery
- Separate gas tank not included
Pump unit specifications:
- CET single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Steel pump shaft
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20' (6 meter) lift
- One - 1.5" (38 mm) NPT-M delivery outlet flange
- One - 2.5" (65 mm) suction inlet
- Dimensions: Length - 19.5" (500 mm); Width - 22.5" (570 mm); Height - 25.5" (650 mm)
- Weight: 147.4 lbs. (67 kg)
- Control panel and quick connector
Included Accessories:
- 20 Amps alternator
- Pressure gauge
- Low oil alert
- Quick connect for 12-V battery
Warranty:
3 Years Limited
Details
SKU: |
PFP-SM-23HPVGD-MR |
