Description
Waterous PB18-G2015F 18HP Briggs & Stratton Fire Pump, High Pressure / Low Volume
Waterous PB18-G2015
Enhance Your Wildland/Attack Fire Suppression Capabilities
Designed for wildland/attack fire suppression, the rugged and powerful Waterous PB18-G2015 is a gear-driven centrifugal pump powered by a V-
twin Briggs and Stratton 18 HP (13.4 kW) engine. The PB18-G2015 also comes with a two-year warranty and is CE marked.

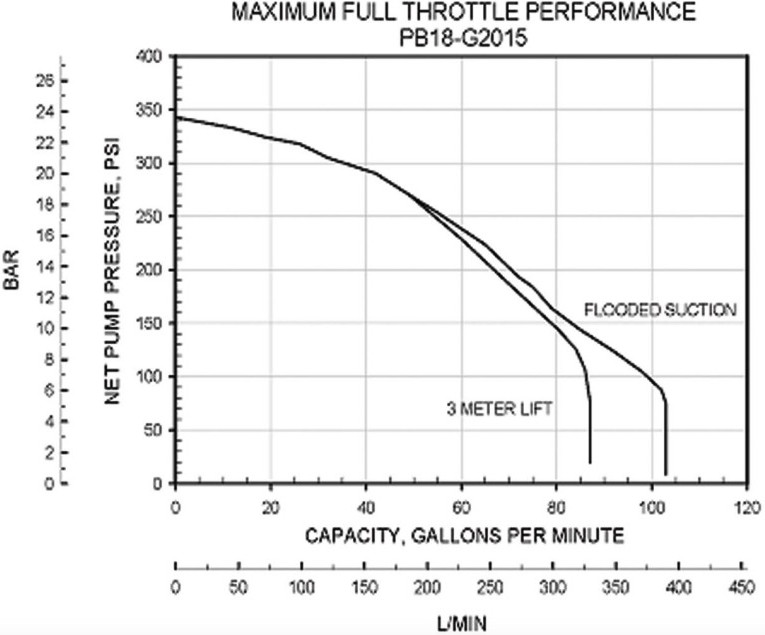

| GPM (LPM) | PSI (BAR) | |||
| Max Flow: | 75 GPM (300 lpm) | 190 PSI (13 bar) | ||
| Max Pressure: | 20 GPM (80 lpm) | 320 PSI (22 bar) |
PUMP SPECIFICATIONS:
Type: Wildland - Attack
Gear Case:
Two-gear speed increaser utilizing high-strength aluminum alloy case, helical cut, hardened steel gears and anti-friction bearings
Intake:
2 inch female NPT
Discharge:
1-1/2 inch female NPT, no ball valve (G2015F)
Console:
Operator's panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control panel light and 12 volt outlet.
Volute Body and Head:
High-strength aluminum alloy, anodized for superior corrosion
resistance.
Impeller:
High-strength, corrosion-resistant bronze, fully-enclosed, double-hubbed to balance hydraulic thrust, mechanically balanced to eliminate vibration
Wear Rings:
Long wearing bronze. Easy to replace when required to restore original
pump efficiency.
Shaft Sleeve:
High-strength stainless steel
Shaft Seal:
Spring-loaded mechanical type
Priming:
Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve operates with push/pull knob
Warranty:
Waterous Two-Year Limited Warranty
ENGINE SPECIFICATIONS:
Engine:
Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 HP (13.4 kW) @ 3600
RPM. 34.75 cu. in. (570 cc) displacement, 4-cycle, gasoline fueled, horizontal shaft
Lubrication:
Full pressure lubrication system with an automotive style oil filter. Oil fill tube with dipstick
Starter:
12-volt electric and manual recoil.
Alternator:
16 A
BASES:
Rail:
Rigid steel channels. Control panel and fuel tank shipped loose.
No Base:
Control panel and fuel tank shipped loose.
FUEL TANK:
Rail or No Base Models:
All PB18 models (except PB18-LE) with Rail or No Base will have a shipped-loose, 3-gallon (11 liter) fuel tank that meets the EPA evaporative requirement (40 CFR Part 1060)
Approximate Dimensions and Weights
| Length | Width | Height | Dry Weight | Ship Weight | ||||||
| Rail Base: | 22-3/4" (57.8 cm) | 19" (48.3 cm) | 20" (50.8 cm) | 120 lbs (54.4 kg) | 148 lbs (67.1 kg) | |||||
| No Base: | 22-1/2" (57.1 cm) | 19" (48.3 cm) | 19" (48.3 cm) | 108 lbs (49.0 kg) | 136 lbs (61.7 kg) |
