Hale Pumps

Hale HPX275-B35 Portable Firefighting Pump

No reviews yet Write a Review
$7,599.95
Hale HPX275-B35 Portable Firefighting Pump
Hale HPX275-B35 Portable Firefighting Pump
Hale HPX275-B35 Portable Firefighting Pump
Hale HPX275-B35 Portable Firefighting Pump
SKU:
HALE-HPX275-B35
Shipping:
Free Shipping
Current Stock:
$7,599.95

Frequently Bought Together:

Hale HPX275-B35 Portable Firefighting Pump
Inc. Tax
Ex. Tax

Description

Hale HPX275-B35 Portable Firefighting Pump

When you need to move a lot of water, the Hale HPX275-B35 Portable Firefighting Pump is a high quality pump that is engineered to perform.

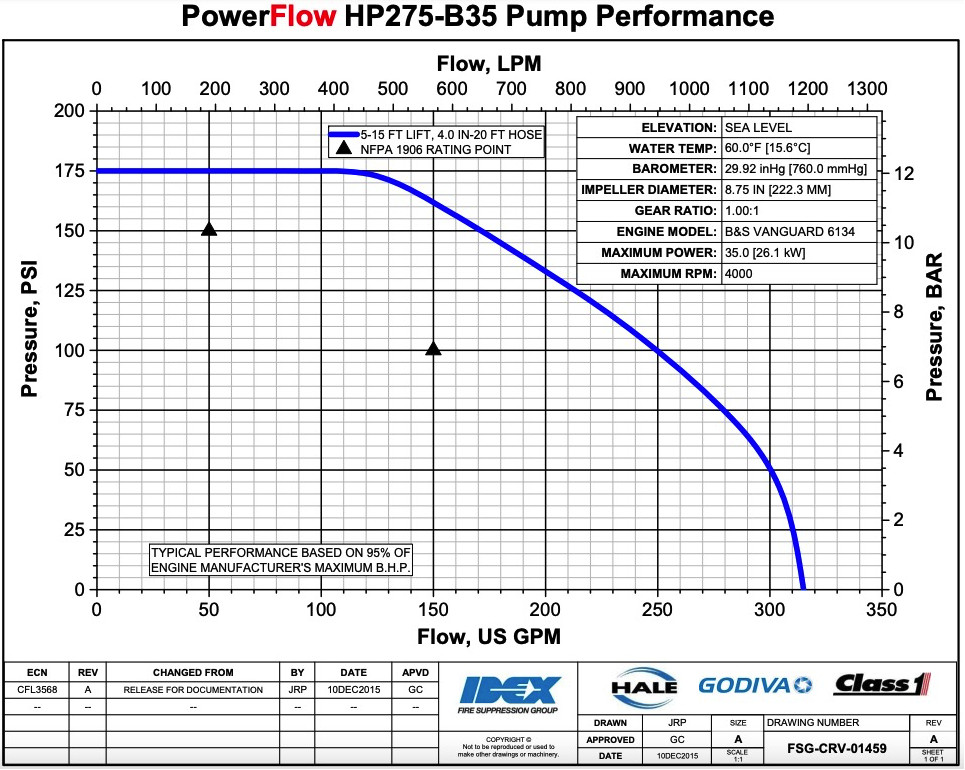

Flows (5' draft):
290 GPM @ 60 PSI
250 GPM @ 100 PSI
170 GPM @ 150 PSI

Hale Pumps range of high flow pumps give you the capacity you need.

Whether your application is for low pressure firefighting, water transfer or de-watering, there is a Hale high flow pump for you.

Hale has a long heritage of designing and manufacturing high performance fire pumps, so you can trust Hale to deliver the performance you demand.

Features:

  • Flows ranging from 170 GPM @ 150 PSI to 250 GPM @ 100 PSI
  • Ultra-reliable Briggs & Stratton 35HP 4-cycle V-Twin big bore gasoline engine
  • Electric start/ manual recoil backup
  • Anodized aluminum alloy pump head and body
  • Pump head and body coupled together with stainless steel band clamp for easy serviceability
  • Bronze impeller and renewable wear rings
  • Self-adjusting mechanical seal
  • 6' wiring harness


Control Panel:

  • Discharge gauge
  • Priming lever
  • Start button
  • ON/OFF switch
  • Oil warning light
  • Choke
  • Throttle control


Specifications:

Length:   24" inches
Width:   23.5" inches
Height:   24.38" inches
Weight:   190 lbs (86 kg)
Suction Connection:   4.0" Victaulic
Discharge Connection:   3.0" Female NPT
Body and Head:   Lightweight, high strength, anodized aluminum
Pump Shaft:   Engine shaft with bronze sleeve
Impeller:   Enclosed type, silicon bronze
Clearance Rings:   Renewable type, bearing bronze
Gear Box:   Direct drive
Priming:   USFS Guzzler hand primer (optional ESP-12 electric rotary vane primer)
Type:   Medium Pressure, High Volume
Max Pressure (PSI):   175 PSI
Max Flow (GPM):   300 GPM
NFPA 1906 Rated Capacity:   50 GPM @ 150 PSI, 150 GPM @ 100 PSI


*NOTE: Not for sale or use in California
